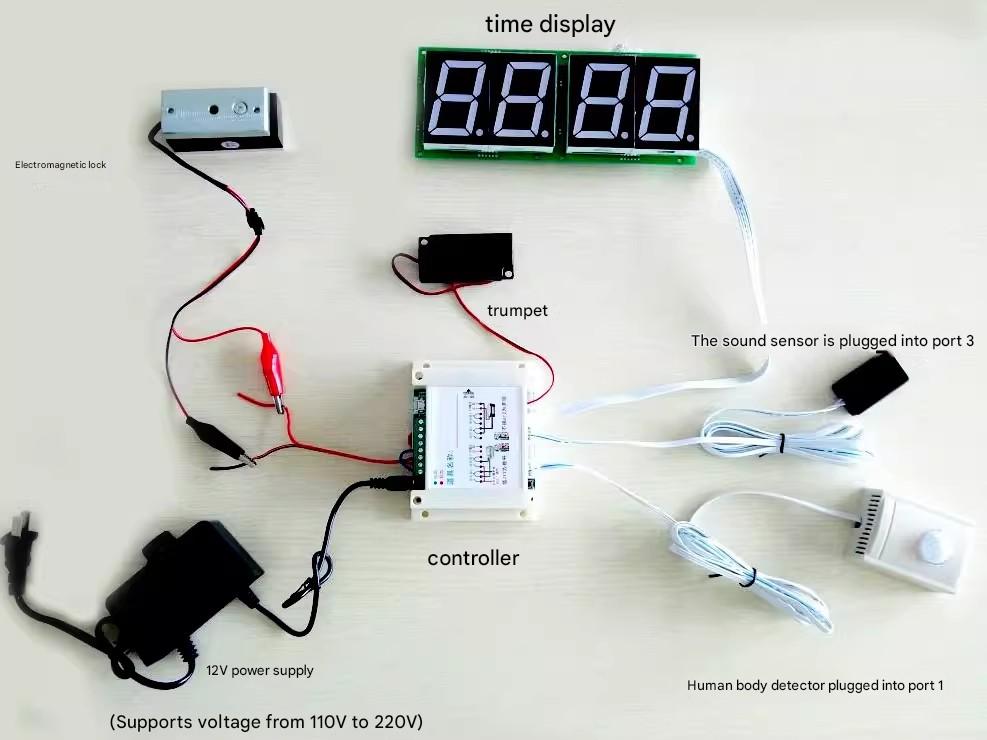

Instructions: After powering on, the controller enters standby mode and plays the first audio clip. After 60 seconds, the mechanism begins. Once a person is detected, the game begins (a countdown begins on the time display). Continuous silence for a set time (20 seconds, 40 seconds, 60 seconds, 90 seconds, 2 minutes, 2 minutes and 30 seconds, or 3 minutes) triggers the mechanism and plays the second audio clip. If a sound is heard during the detection process, the timer resets. Each time a sound is detected, the controller beeps. After successfully triggering the mechanism, the controller resets.
[Product Highlights]
1. User-defined silent timer (20 seconds, 40 seconds, 60 seconds, 90 seconds, 2 minutes, 2 minutes and 3 minutes); 2. User-configurable game audio; (Built-in 8MB storage, audio files are in MP3 format)
3. Powerful functionality with two operating modes: Standard and Pusher. The controller can be set to either mode; the two modes cannot be used simultaneously. In standard mode, the lock can be unlocked and the light can be illuminated. In push-bar mode, the push-bar motor can be controlled.
4. The controller has a built-in speaker and supports external speakers.
The controller can directly power a 12V electromagnetic lock. Reset Method: This mechanism has two relays. After successfully triggering the mechanism, both relays 1 and 2 are powered on to reset.
